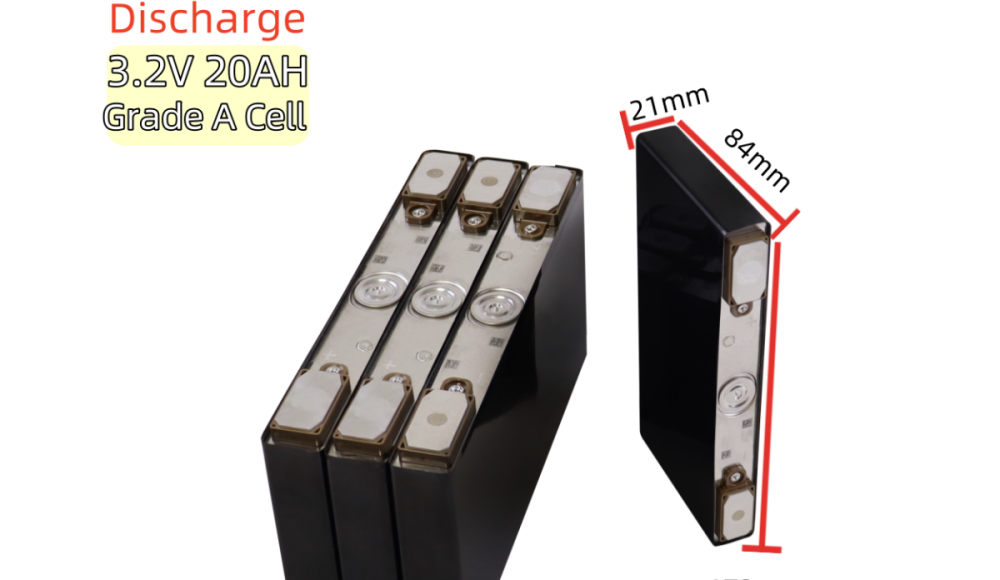

Panasonic 3.2V 20Ah LiFePO4 500A Discharge Prismatic Battery Cell

20Ah-6

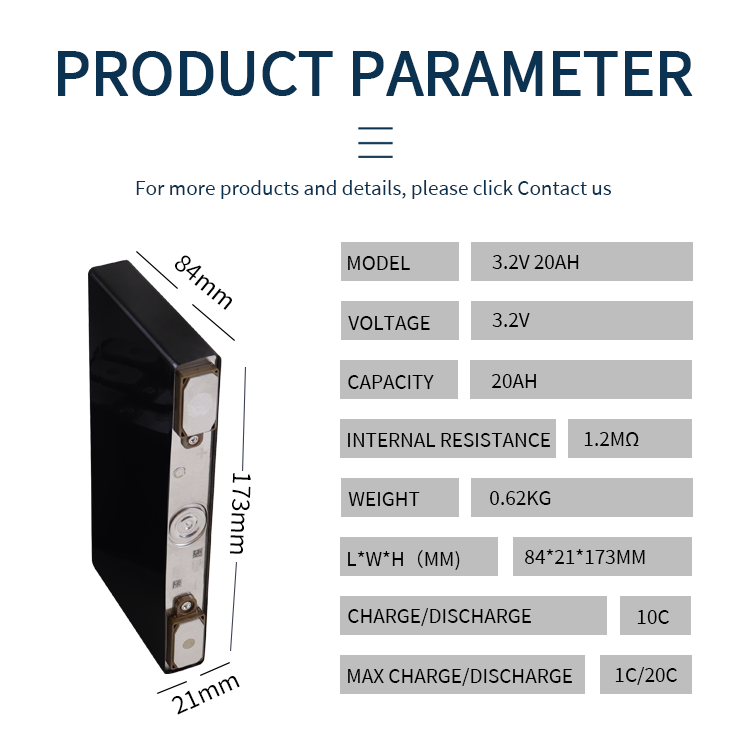

  • 20Ah Nominal Capacity: High energy storage.
  • 3.2V Nominal Voltage: Standard LiFePO4 voltage.
  • 3000+ Cycle Lifespan: Extended service life.
  • 100A Max Charge, 500A Continuous Discharge, 1000A Pulse: High-power handling.
  • LiFePO4 Chemistry: Superior safety and thermal stability.
  • Low Internal Resistance (≤1.5mΩ): Maximizes efficiency.
  • 3-Year Warranty: Long-term reliability.
  • Compact Dimensions: 173*90*21mm, 0.51kg.
  • Wide Operating Voltage: 2.5V-3.65V.
